Outdoor lighting solutions are vital for safety, aesthetics, and functionality. We deliver more than just LED fixtures—we provide integrated solutions that combine advanced technology, durability, and smart features.
A dependable power connection relies on three key elements: high-quality lugs and connectors, properly matched crimping tools, and skilled labor. To overcome the challenges of on-site installations, our mechanical shear-off lugs and connectors simplify the process, eliminating human error and ensuring reliable performance.
Designed for urban landscapes, commercial spaces, and residential areas, our solutions offer superior lighting, long-term reliability, and easy maintenance.

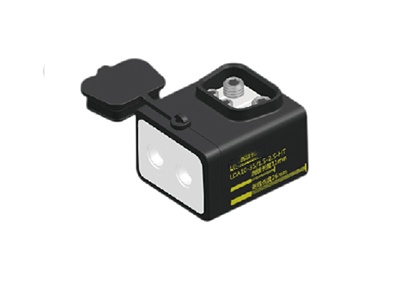

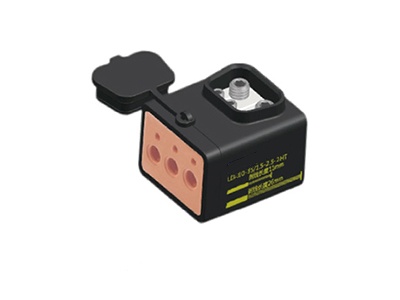

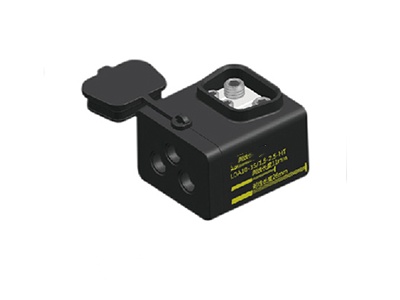

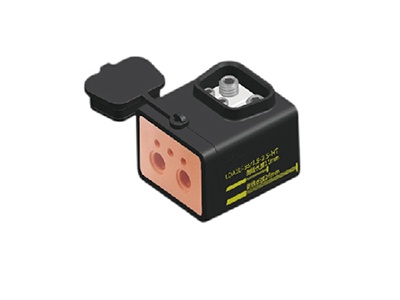

LD Street Light Connector
LD10-35-HT
LD10-35/10-35-HT
LD10-35/1.5-2.5-HT
LD10-35/1.5-2.5-2HT

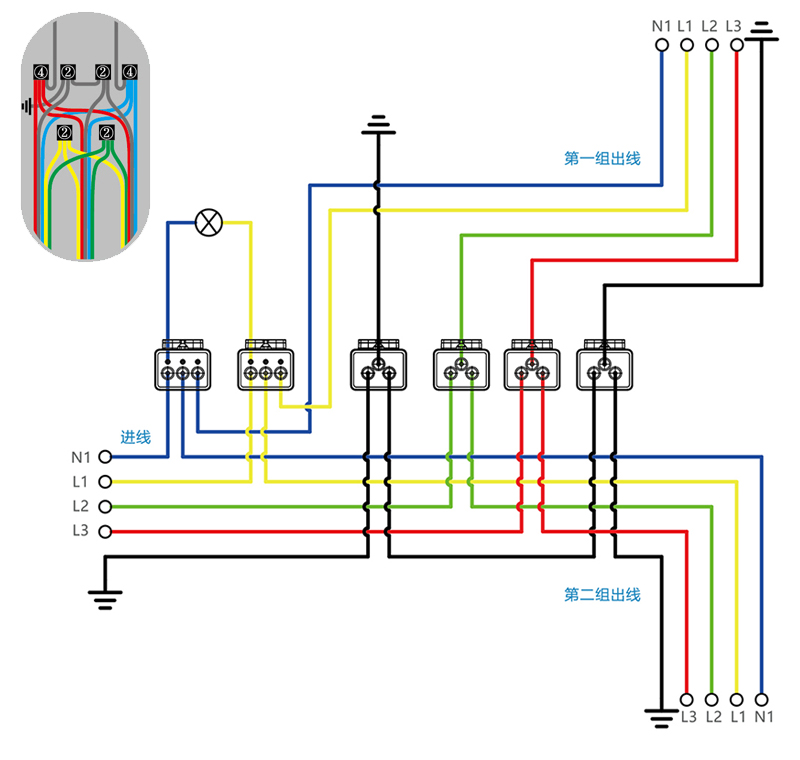

T-junction wiring diagram
Application Range
Suitable for streetlight line connections of aluminum, aluminum alloy, and copper cables with rated voltages of 1kV or below.
Material
Main body made of high-strength alloy aluminum; insulating shell made of polypropylene (PP) and thermoplastic elastomer (TPE).
Testing Standards
- IEC 61238-1:2003
- DL/T 1190-2012
Testing Items
- Mechanical tensile test
- Resistance test
- 1000 thermal cycles test
- AC withstand voltage test in water
Protection Rating
- IP68
LD Streetlight Connector Features
- Integrated Insulation and Connection: Lightweight and compact design, ideal for installations in confined spaces such as utility poles.
- Optimal Insulation, Waterproofing, and Sealing: Offers excellent protection from external factors, ensuring a safe and reliable connection.
- Wide Applicability: Compatible with most aluminum, aluminum alloy, and copper cables for streetlight line connections on the market.
- Easy Installation: Simple cable insertion and bolt-tightening system; installation can be completed using a standard hex wrench.
- High Efficiency: Flexible use with customizable combinations based on actual requirements, significantly reducing costs.
- Low Overall Cost: Easy to maintain and service, offering cost-effective long-term use.
Wiring Diagram

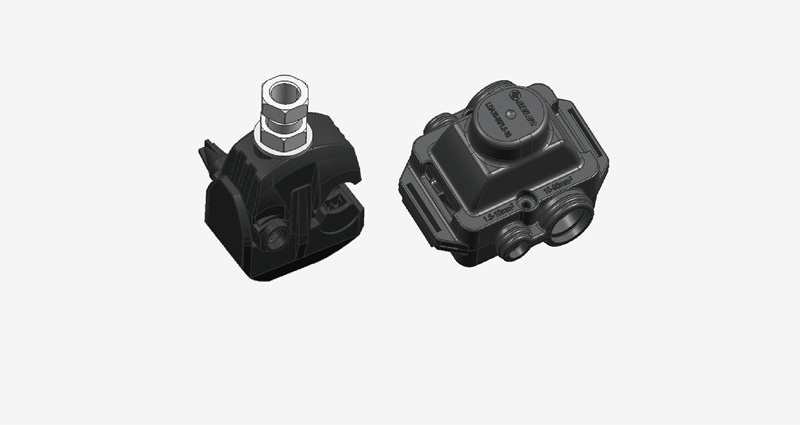

LD Street Light Waterproof Gel Box
LD Streetlight Waterproof Gel Box Features
- Pre-filled Gel Insulation: Composed of a high-strength weather-resistant molded jacket and an insulating piercing clamp.
- Durable Jacket: Made from high-strength, weather-resistant material through injection molding.
- Silicone Gel Insulation: The jacket is pre-filled with silicone gel that offers excellent insulation and high/low-temperature resistance.
- Easy Operation and Installation: Simple to use and easy to install.
- Tested Insulation Performance: Passes underwater 6kV, 1-minute insulation voltage test.
- Insulation Resistance: 250Ω
- Protection Level: IP68
Testing Standards
- GB/T1408.1-2006
- GB/T 24343-2009
- GB 4208-2008

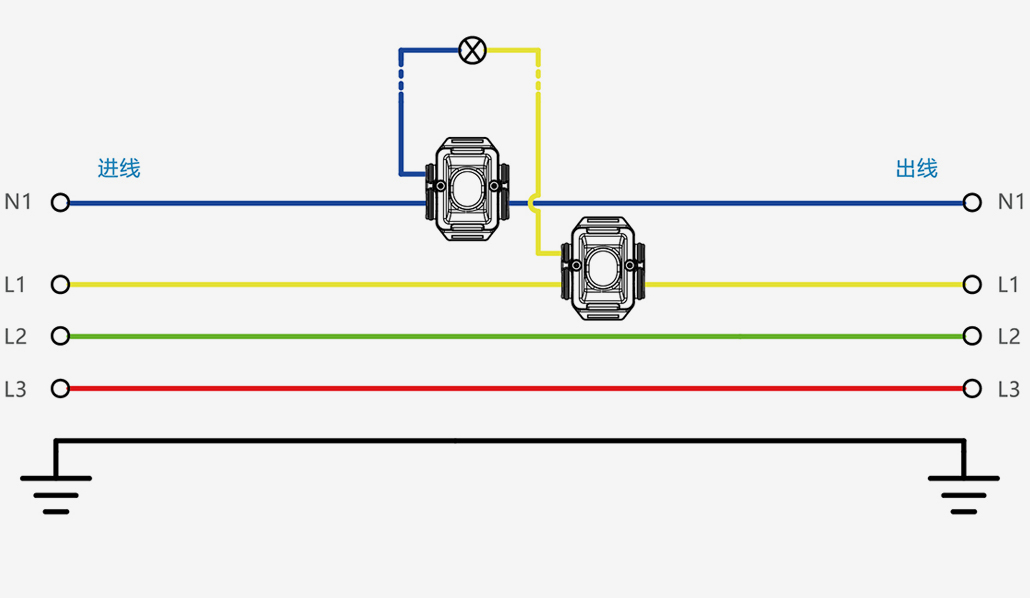

Underground branch wiring diagram

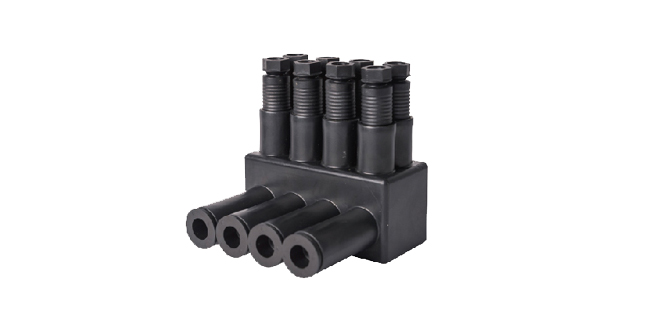

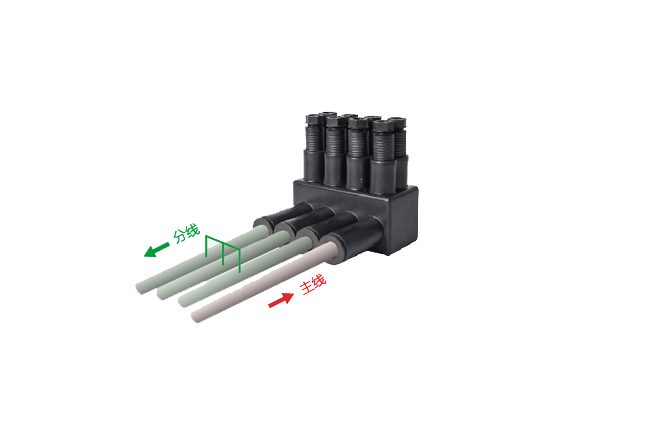

UJBC Insulated Waterproof Splitter
Application Range
In humid environments, it enables multi-strand branching of cables, replacing traditional junction boxes and branching boxes.
Material
High-strength alloy aluminum and weather-resistant rubber for waterproofing.
Testing Standard
ANSI C119.1-2011
Features
- Wide span range, supporting 2.5-150 mm
- Copper-aluminum transition connection and connections between aluminum (aluminum alloy) and aluminum cables
- Built-in insulation and waterproof functionality
- No need to strip cable insulation; simply insert and use
Easy Connection
| Outdoor lighting | Connection status | Yangtze |
| Safety | High resistance | Low resistance |
| Poor insulation | Excellent insulation | |
| Poor waterproofness | Waterproof grade IP68 | |
| Convenience | Limited space | No space restrictions |
| Requires the use of hydraulic tools | Allen wrench is enough | |
| Low construction efficiency | High construction efficiency | |
| Economy | Difficult to repair | Easy to repair |
| High maintenance cost | Low overall cost | |
| Cannot be reused | Reusable |
Why Choose Us?
Expertise: Decades of experience in delivering high-quality lighting solutions.
Innovation: Cutting-edge technology for smarter, more efficient lighting.
Global Reach: Serving clients worldwide with reliable products and services.
Transform your outdoor spaces with our integrated and intelligent lighting solutions. Contact us today to learn more!

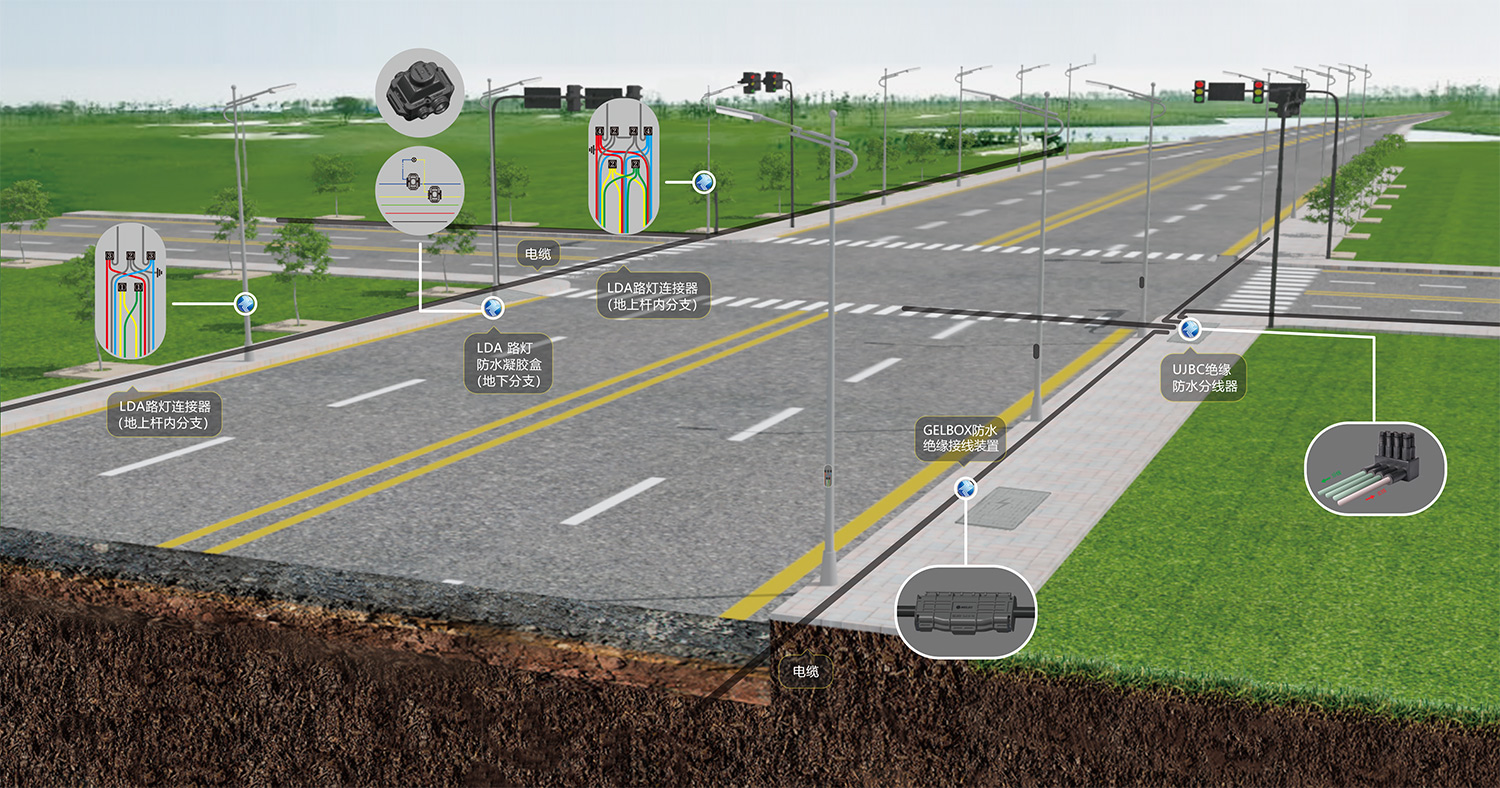

Key Features of Our Outdoor Lighting Solutions
ntegrated Connection Solutions:
Our product offers a comprehensive solution for outdoor lighting connections, combining connection, insulation, and waterproofing in one system.
Suitable for both above-ground streetlamp poles and underground cable pits, it ensures reliable performance in various environments.
Features pre-formed silica gel and a wide span design, providing excellent waterproofing, insulation, and resistance to weathering and aging.
Flexible combination and configuration options allow for customization based on customer requirements, improving construction efficiency and reducing costs.
Smart Lighting Systems:
Our smart lamp posts integrate IoT-enabled technology for remote control, motion detection, and adaptive lighting.
Equipped with sensors and communication modules, they support smart city applications such as traffic monitoring, environmental sensing, and data collection.
Energy Efficiency:
High-performance LED technology reduces energy consumption and operational costs.
Durability:
Weather-resistant materials ensure long-lasting performance in harsh outdoor conditions.
Sustainability:
Eco-friendly solutions that minimize environmental impact.
Applications
Urban Landscapes: Streetlights, park lighting, and public space illumination.
Commercial Spaces: Parking lots, building facades, and signage lighting.
Residential Areas: Garden lighting, pathway lights, and security lighting.
